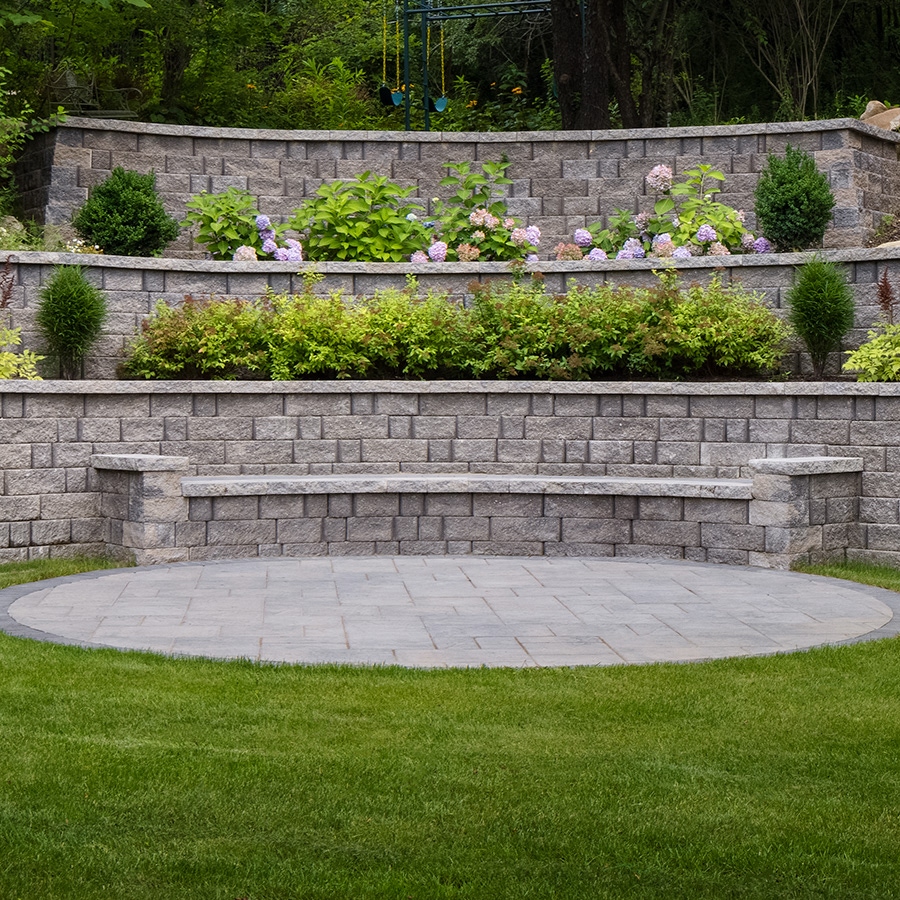

Diamond® 9D
The dependability of Diamond® retaining wall systems has made them the preferred choice for decades. The Diamond® 9D retaining wall system has the advantages of a lighter weight and softened contours.
Features and Benefits:
- All system components are standard-split in-line.
- Rear lip locators easily established a uniform wall batter.
- A matching cap and corner completes the system.
- Build gravity walls up to 3 feet high, including the buried course.
- Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.
- Minimum inside radius, measured on the base course to the front of the units: 6 feet.
- The rear lip establishes a 1 1/8″ setback for a 10.6 degree system batter.
*All colors and/or products may not be available in all areas. Please inquire for availability and special order options.
Colors
Cotswold Mist
Harvest Blend
Sheffield Blend
Technical Information
Specs
Technical Information
Estimating Charts
Specs
Diamond 9D Straight Face Unit
6 x 17 3/4 x 9
Diamond 9D Virtual Joint
6 x 17 3/4 x 9
Available in Right & Left
Available in Right & Left
Diamond 9D Step Unit
6 x 16 x 12
Universal Cap
3 x 18/12 x 13
U Start Base Block
3 1/2 x 18 7/16 x 12
U Start Base Block actual coverage length is 16 11/16"
U Start Base Block actual coverage length is 16 11/16"
