Lamina Tandem™

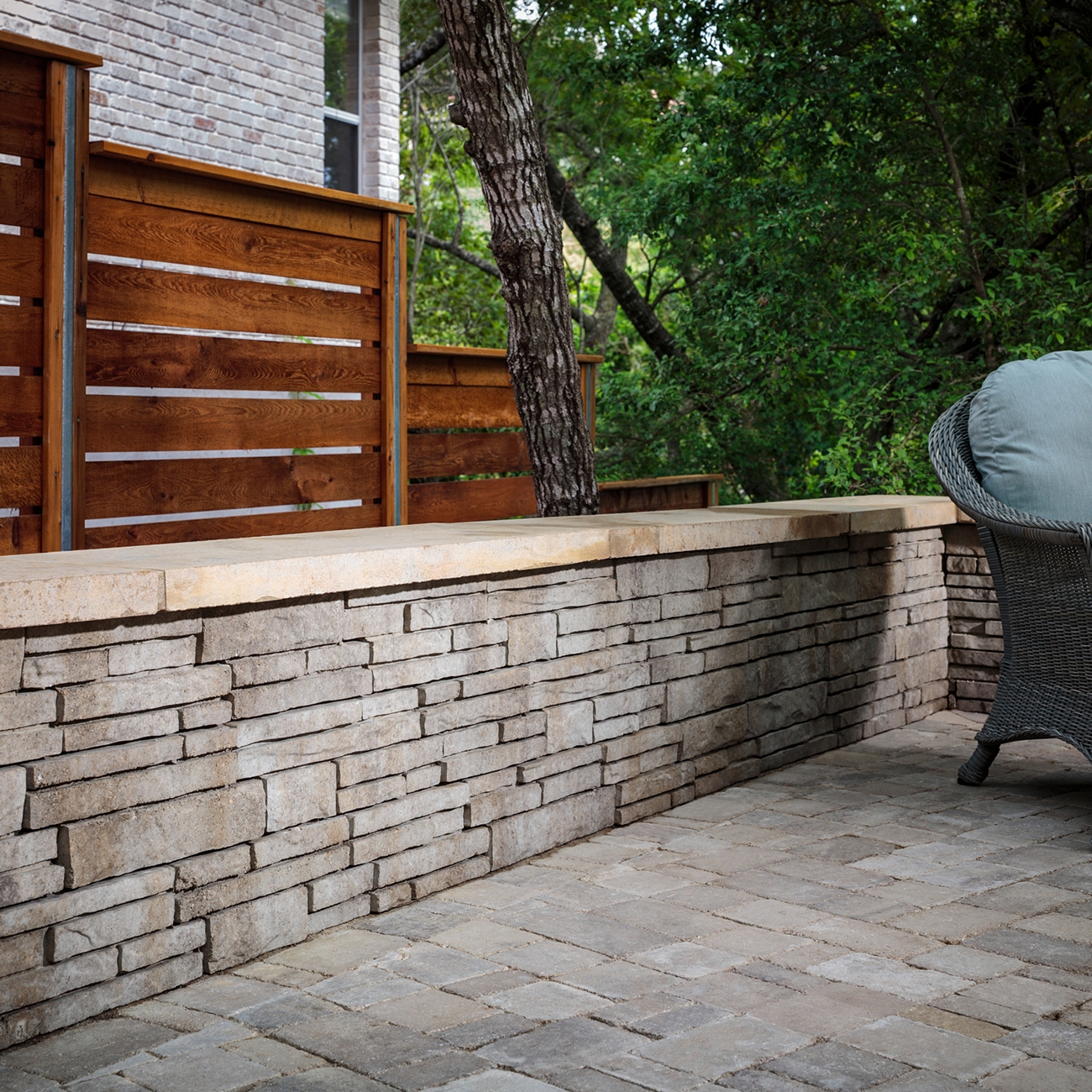

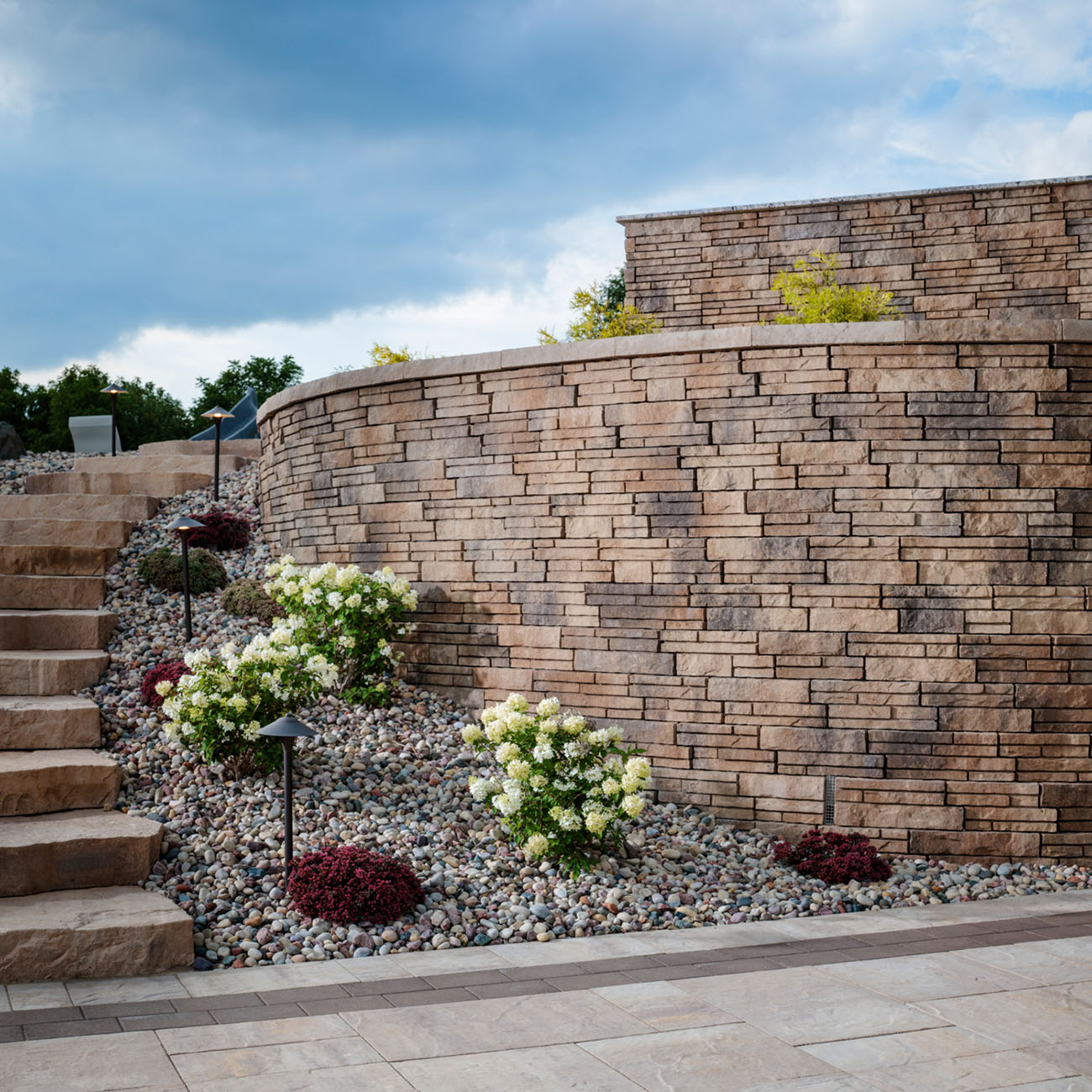

Lamina Tandem provides the look and feel of natural stacked stone with the versatility of installation options from the Tandem Wall platform. Create beautiful freestanding walls, retaining walls and outdoor entertaining features with Lamina Tandem.
Features & Benefits:
- Distinctive chiseled stone texture manufactured to consistent height tolerances.
- Build curved or straight walls.
- Offered in 3 sizes to allow for design versatility and customization.
- Minimum outside radius of 6′.
- Freestanding walls up to 28″.
- Engineered 90° corners.
- Gravity walls up to 3 feet using a 1/2 inch setback per unit (4 degree system batter).
- Reinforced walls up to 8 feet.
Colors
Pewter
Scandina Gray
Sienna Blend
Learn more about the Endless Possibilities with the Tandem® Wall System.
Learn More
Technical Information
Specs
Technical Information
Installation Guide
Specs
Lamina Tandem/Unit 1
7 x 13 3/16 x 2 5/8
Lamina Tandem/Unit 2
7 x 15 13/16 x 2 5/8
Lamina Tandem/Unit 3
7 x 18 7/16 x 2 5/8
U Start Base Block®
12 x 18 7/16 x 3 1/2
Connector
8" Connecting Member
Cap Unit
24 x 15 x 3 1/4
Tandem Modular Block
7 1/16 x 7 7/8 x 7 7/8
Tandem Modular Block Connector
Included with Modular Blocks
Modular Grid Frame
28 3/8 x 42 1/2
Column Kit
21 x 21 x 42
