Diamond Pro® Air

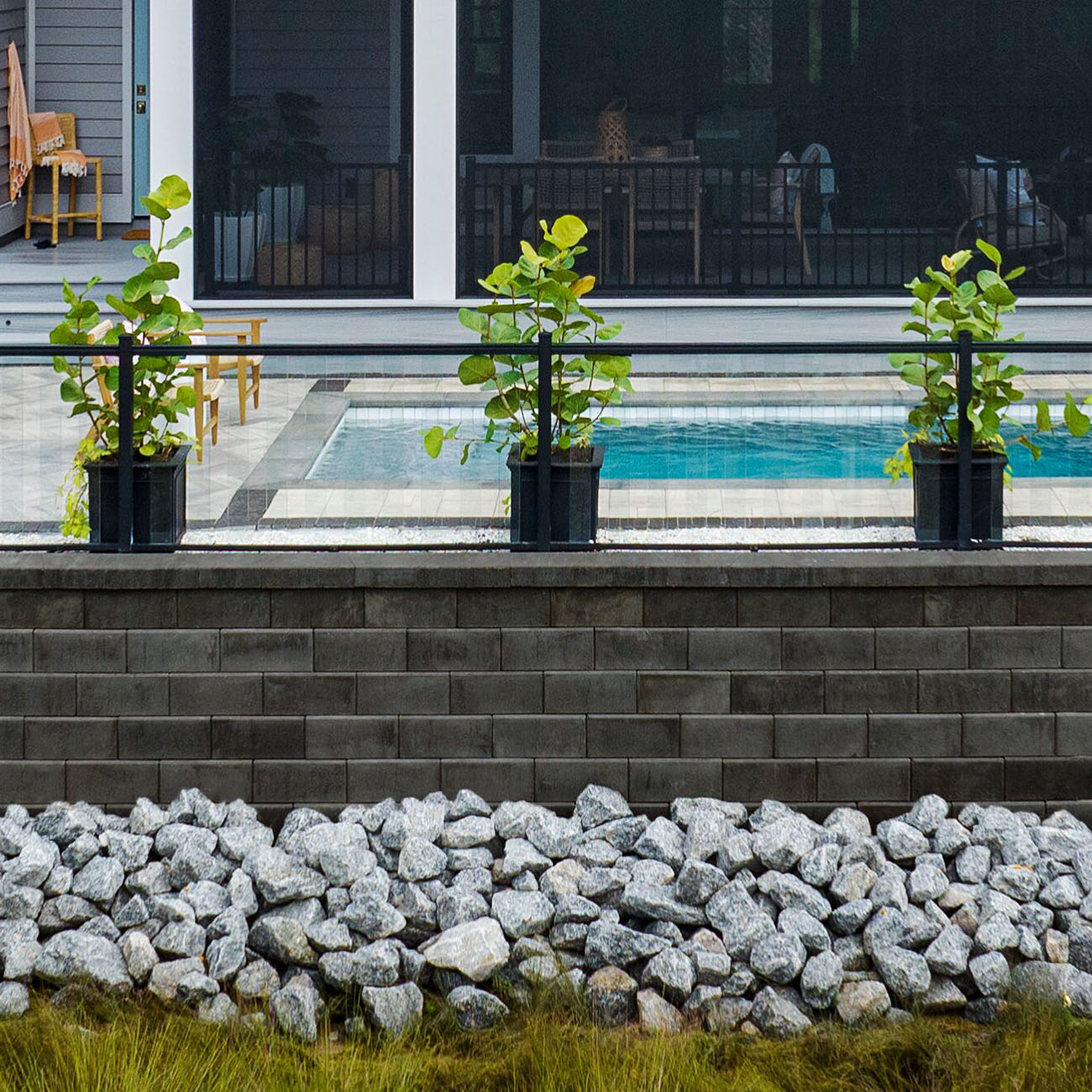

The Diamond Pro® Air is an innovative wall block with a locator system that creates a near-vertical wall. This system fits any retaining wall application and increases installation speed with its lightweight design.
Feature & Benefits:
- Can be installed as a gravity wall or geogrid-reinforced wall.
- Weighing only 54 lbs., this 1 square foot block maximizes installation and shipping efficiencies.
- Front lug design produces a 9/16″ per unit setback for a 4° system batter.
- Cores can accommodate light fencing when combined with additional engineered elements.
- Ideally situated for retaining walls less than 15 feet tall.
- Can be used to build gravity walls up to 3′ 4″ high, including the buried course.
- Minimum outside radius, measured on the top course to the front of the units: 4 feet.
Colors
Grey
Tan
Specs
Technical Information
Specs
Diamond Pro® Air Straight Face
8 x 18 x 12”
Diamond Pro® Air Smooth Face
8 x 18 x 12”
Diamond Pro® Air Quarried Face
8 x 18 x 12”
Diamond Pro® Air Straight Face Corner
8 x 18 x 9”
Diamond Pro® Air Smooth Face Corner
8 x 18 x 9”
Diamond Pro® Air Quarried Face Corner
8 x 18 x 9”
Diamond Pro® Air Straight Cap
4 x 18 x 12”
Diamond Pro® Air Smooth Cap
4 x 18” | 12 x 13”
Diamond Pro® Air Quarried Cap
4 x 18” | 12 x 13”
Technical Information
Cut Sheets
